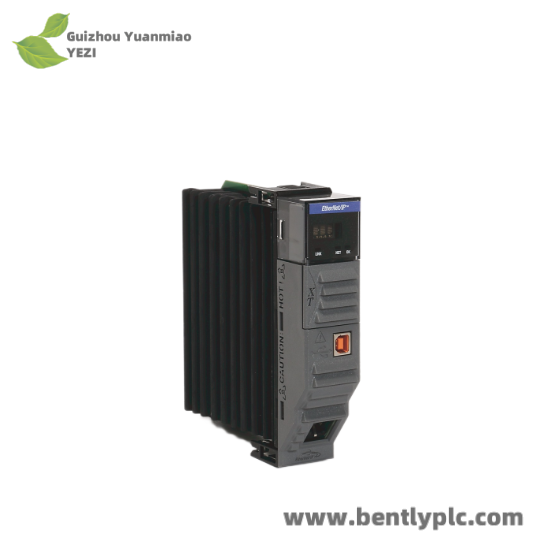

Allen-Bradley 1756-EN2TXT ControlLogix Ethernet/IP Bridge Module

Model Type:Bridge Module

Manufacturer(s):Allen-Bradley

Model Number:1756-EN2TXT

Communication Protocol:EtherNet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not Equipped

Amperage Rating:Drawn: 400 MA At 5.1 V

Mounting:Chassis

    The Allen-Bradley 1756-EN2TXT ControlLogix Ethernet/IP Bridge Module is designed to enhance network integration capabilities in industrial environments, offering robust compatibility and enhanced data transmission efficiency.

    This bridge module seamlessly connects ControlLogix systems to Ethernet/IP networks, facilitating real-time data exchange between diverse industrial automation components, including PLCs, drives, and other field devices.

    Featuring an open-type enclosure, the 1756-EN2TXT supports a wide temperature range (-40°C to +70°C), ensuring reliable operation under various environmental conditions encountered in industrial settings.

    With its low power consumption and high isolation capabilities, this module minimizes energy usage and reduces the risk of electrical interference, optimizing system performance and enhancing overall reliability.

    Engineered for durability and efficiency, the Allen-Bradley 1756-EN2TXT ControlLogix Ethernet/IP Bridge Module is a critical component for modern industrial automation systems, designed to streamline operations, improve productivity, and facilitate seamless integration with existing infrastructure.
