Type:IGBT Module

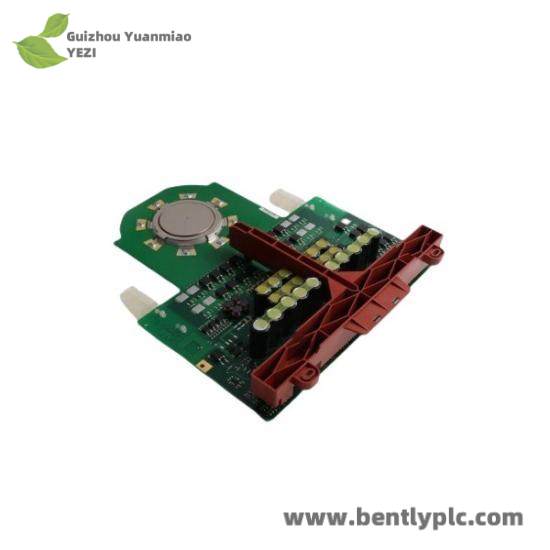

Model:5SHX 1000H0003
Brand:ABB
Operating Temperature Range:-40°C to +125°C
Current Rating:1000A
Voltage Rating:600V
Insulation Resistance:≥10MΩ at 500V DC
Switching Frequency:Up to 16kHz
Power Dissipation:1200W
Package Size:WxHxD: 80mm x 100mm x 50mm
Cooling Method:Thermal Interface Material (TIM) and Forced Air Cooling
The ABB 5SHX 1000H0003 IGBT Module is designed to deliver exceptional performance in demanding industrial environments. Its advanced semiconductor technology ensures superior efficiency and reliability, making it an ideal choice for applications requiring precise control over power flows.
Featuring a compact design optimized for space-saving installations, this module is compatible with a wide range of control systems, ensuring seamless integration into existing infrastructure. Its robust construction withstands harsh environmental conditions, enhancing system uptime and reducing maintenance costs.
Equipped with a state-of-the-art water cooling system, the 5SHX 1000H0003 efficiently dissipates heat, preventing overheating and prolonging the life span of the device. This feature is particularly beneficial in high-power applications where thermal management is critical.
Engineered with high insulation resistance, this IGBT module minimizes electrical noise and enhances system stability, ensuring safe and reliable operation even under fluctuating voltage conditions. Its compatibility with industry-standard protocols facilitates easy communication and control within complex automation systems.
Designed with user-friendliness in mind, the ABB 5SHX 1000H0003 comes with comprehensive documentation and support resources, enabling quick setup and efficient troubleshooting. This makes it accessible to both novice and experienced engineers, streamlining the process of integrating high-performance power control solutions into their projects.
